RevoSilex – Ultra High Frequency Ultrasound for Small Animal Research
Ultra-high frequency ultrasound for small animal research (mice and zebrafish). Monitors cardiovascular function, tumour blood flow and much more.
Ultra High Frequency Ultrasound for Small Animal Research

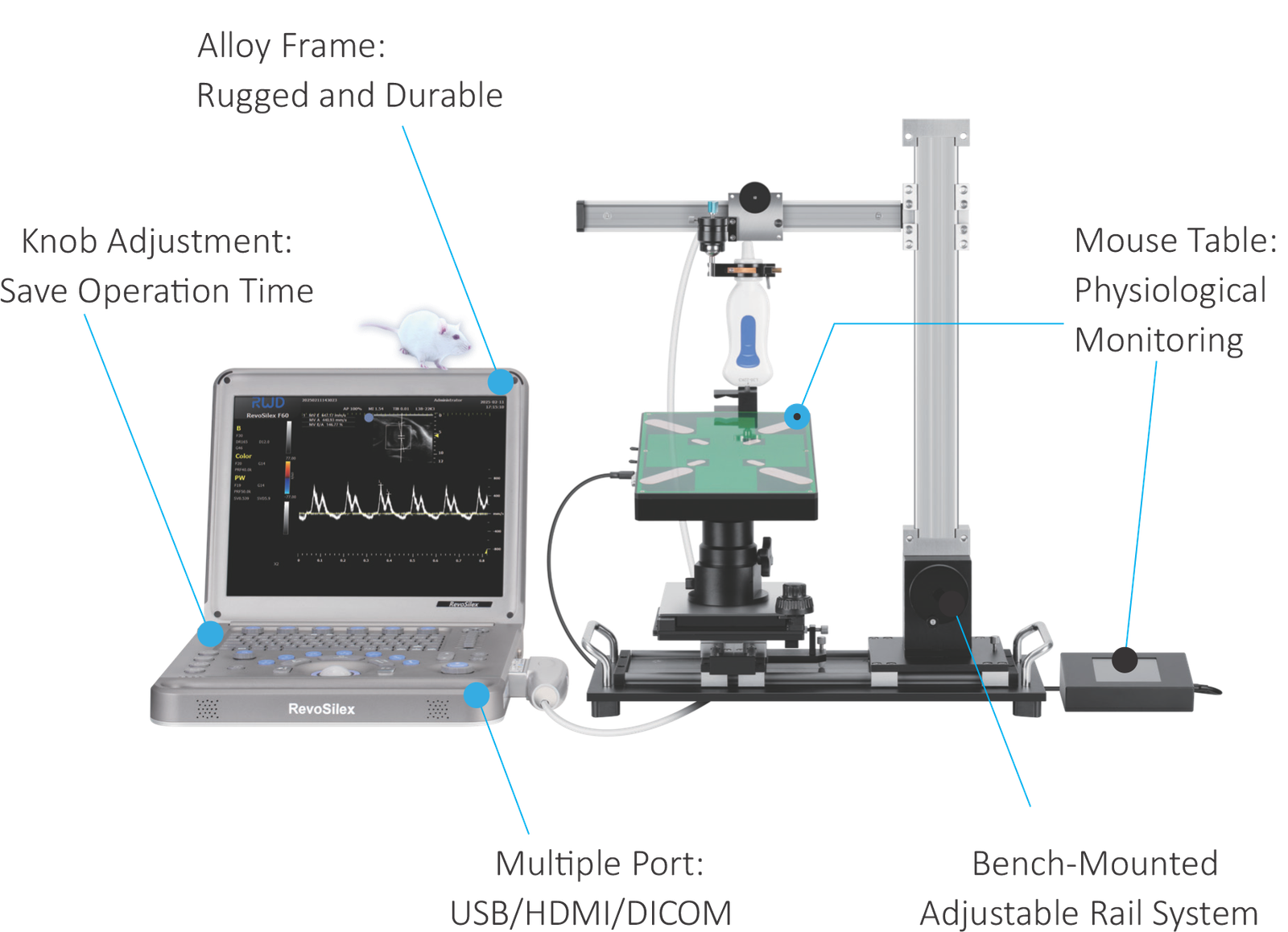

The RevoSilex F30/F60 is designed for high-resolution, non-invasive imaging in small animal models such as mice, rabbits, and zebrafish. With ultra-high-frequency capabilities and color Doppler imaging, it provides real-time monitoring of cardiovascular function, tumor blood flow, and more. Ideal for cardiovascular research, oncology, developmental biology, and drug discovery, its compact design ensures portability and ease of use for long-term or repeated studies.
Overview
The RevoSilex F30/F60 combines cutting-edge semiconductor technology with ultra-high-frequency AFE chips, offering exceptional imaging performance in the 70-80 MHz range. This portable system is perfect for monitoring small animal models such as mice, rabbits, and even zebrafish, providing valuable insights into heart function, blood flow, and tumor vascularization.
With its non-invasive, cost-effective design, RevoSilex is ideal for repeated measurements in long-term studies. It enables precise monitoring of cardiac structure, function, and hemodynamics, making it indispensable for cardiovascular disease research and drug testing. The system’s color Doppler capabilities further enhance its utility in assessing blood flow and identifying early disease markers.
In addition to cardiovascular studies, RevoSilex is also widely used in oncology and drug discovery, where it aids in visualizing tumor blood flow and evaluating therapeutic efficacy. Whether for disease research or genetic studies, the RevoSilex F30/F60 provides real-time, high-quality imaging to accelerate scientific advancements.
Advantages
Ultrasound Probes for Precision Imaging
-
Semiconductor Probe
-
256 Elements wide-array design
-
Frequency up to 62MHz
-
Nano Precision Processing
-
Excellent bandwidth and sensitivity
-
Higher resolution and better contrast
Generation AFE chips for Efficient Collection
-
The UHF dedicated AFE chips
-
Sampling resolution up to 16bit
-
Without Loss digital data acquisition
-
The Frequency of acquisition up to 120 MHZ
-
Images at resolutions reach 30 micron
Offline Analysis Workstation for In-depth Research
-
Scanning and Analysis Separately
-
Mass Import and Export Data, Video, picture
-
Make measurement on your own computer
-
Support for importing image parameter adjustment
Image Modes
B Mode
M Mode
C Mode
PW Mode
TVD
Physiological Monitoring
Applications
Heart
Heart Failure
Vascular Abdominal Aorta
Aorta Abdominal Vascular
Therosclerotic Plaque
Four Chambers
Liver
Kidney
Liver Tumor
Fetal
Cardiac
Eye
Transducer Configuration
Transducer |
Animals |
Applications |
|---|---|---|
| L62-38K3 Center Frequency 50 MHz |
 |
Cardiovascular, Vascular, Tumors, Superficial Tissue, Ophthalmology. 256 elements, Center frequency reaches 50MHz, Frequency range: 38-62 MHz, Axial resolution ≤ 0.03mm. |
| L38-22K3 Center Frequency 30MHz |
 |
Vascular, Embryology, Superficial Tissue, Abdominal, Reproductive, Tumors, Rabbit Eyeball, Tumors, Cardiovascular. 256 elements, Center frequency reaches 30MHz, Frequency range: 22-38 MHz, Axial resolution ≤ 0.05mm. |
| L22-8K3 Center Frequency 15MHz |
 |
Vascular, Abdominal, Cardiovascular. 256 elements, Center frequency reaches 15MHz, frequency range: 8-22MHz, axial resolution ≤ 0.09mm. |
Technical Parameters
RevoSilex F60 |
RevoSilex F30 |
|
|---|---|---|
| Imaging Mode (B\M\C\Power\PW\TVI\TVD) |
√ |
√ |
| Auto One-key Optimization |
√ |
× |
| 3D Flow |
√ |
√ |
| Biopsy |
√ |
√ |
| Small Animal Ultrasound Operating Platform |
√ |
√ |
| Small Animal Ultrasound Zebrafish Probe |
√ |
× |
| Small Animal Ultrasound Mouse Probe |
√ |
√ |
| Small Animal Ultrsaound Offline Analysis Workstation |
√ |
√ |
